LE-200

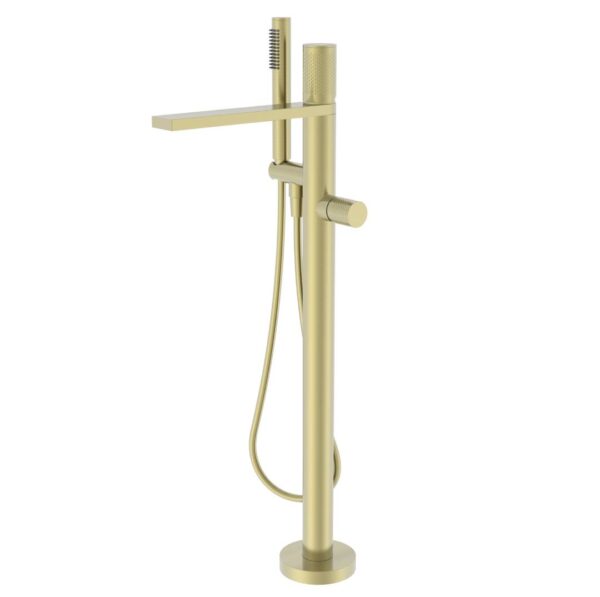

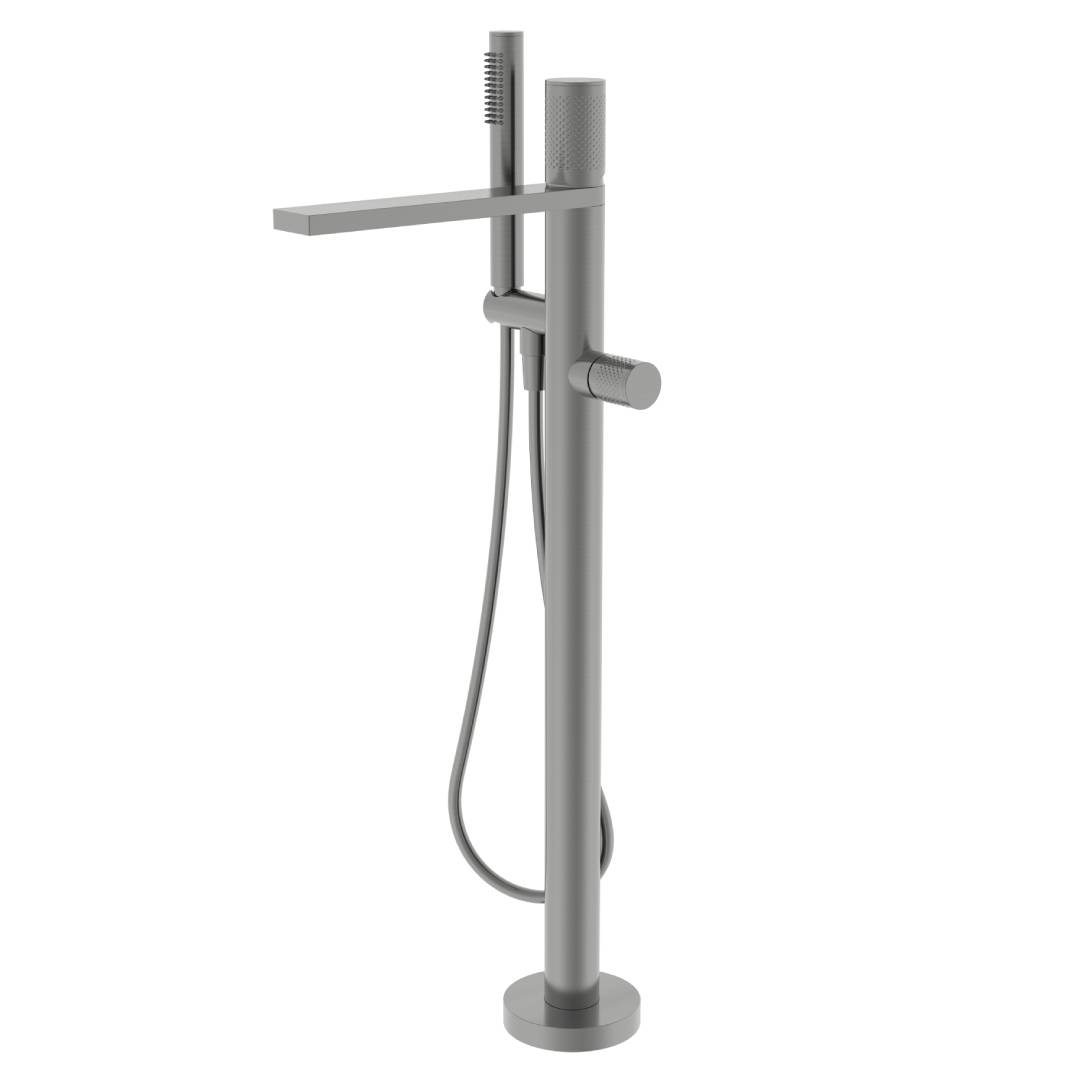

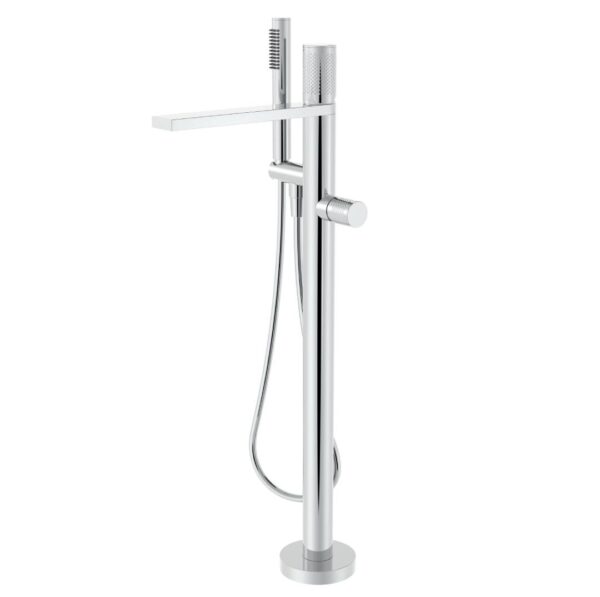

The LE-200 is a stylish freestanding bath mixer featuring a built-in hand shower and slimline spout. It has a height range of 695–713 mm, a 248 mm spout reach, and a base diameter of Ø120 mm. The hand shower measures 207 mm in height with a Ø28 mm diameter, mounted neatly on the side. The handle unit is 80 mm tall with a body diameter of Ø48 mm, and the outlet sits at a height of 561–579 mm. Designed for floor installation, the LE-200 combines clean design with functional elegance, ideal for modern freestanding tubs.

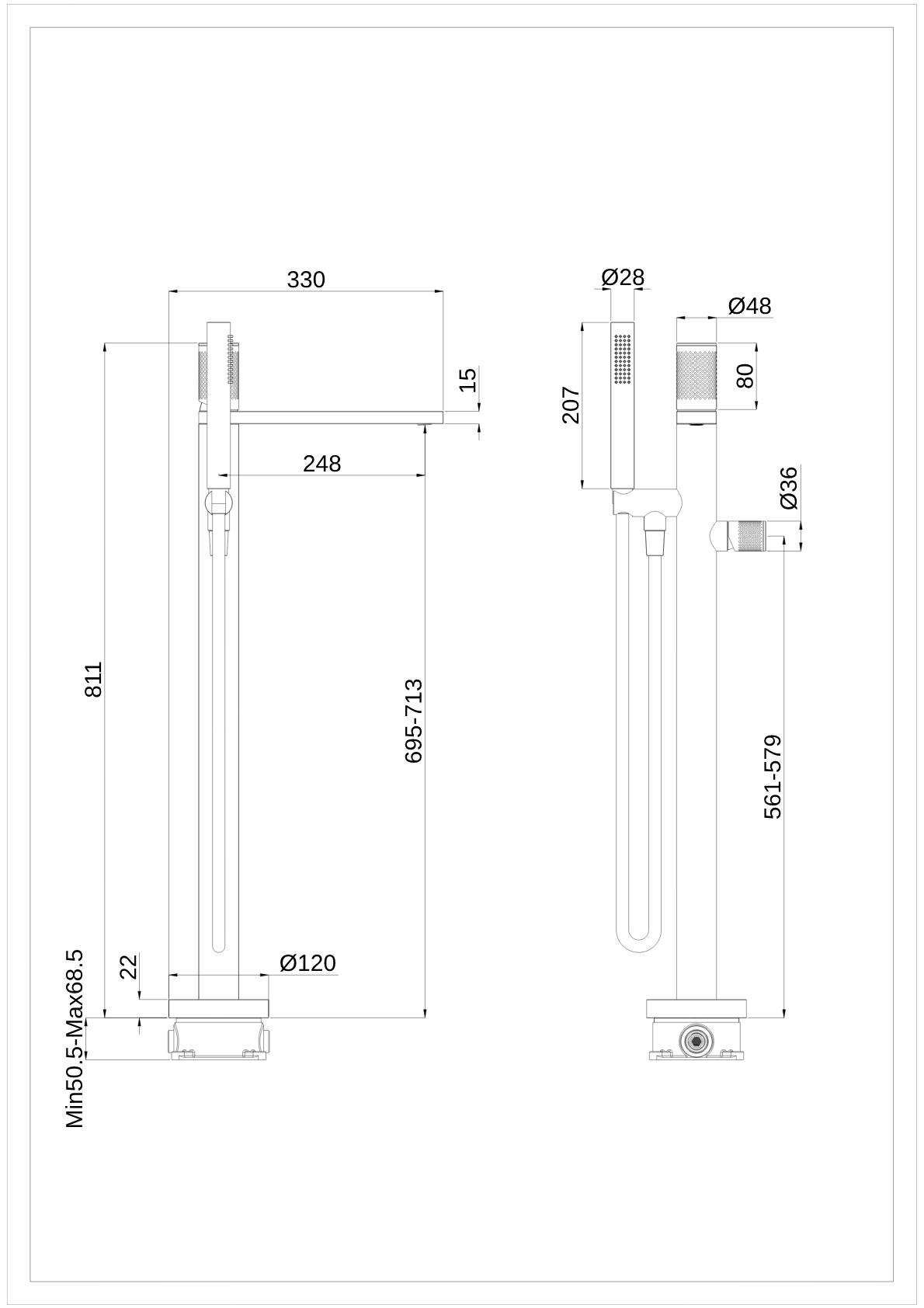

Key Dimensions & Specifications

Overall Dimensions:

• Total Height (to top): 811 mm
• Height (to spout): Adjustable from 695 mm to 713 mm
• Spout Projection (reach): 248 mm
• Spout Thickness: 15 mm

Hand Shower:

• Height: 207 mm
• Diameter: Ø28 mm

Handle Section:

• Handle Height: 80 mm
• Handle Diameter: Ø48 mm

Body & Pipe:

• Main Pipe Diameter: Ø36 mm
• Base to Outlet Height: 561–579 mm

Mounting Base:

• Base Diameter: Ø120 mm
• Base Height: Min 50.5 mm – Max 68.5 mm
• Offset from Center to Back Plate: 22 mm
