RA-200

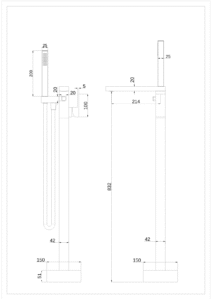

This is a technical drawing of a Raffle freestanding bath shower mixer with an integrated hand shower. The unit stands 832 mm high, featuring a 200 mm tall hand shower mounted on the side. The mixer spout extends 214 mm from the main body, with a spout and pipe diameter of 42 mm. The base measures 150 x 150 mm and is 51 mm high, designed for stable floor mounting. The clean, minimal design is ideal for modern freestanding bathtubs, combining functionality with sleek aesthetics.

Key Components & Dimensions:

Hand Shower:

• Height: 200 mm
• Width: 25 mm
• Mounting Offset from Body: 20 mm

Mixer Body:

• Valve Section Height: 100 mm
• Valve Body Thickness: 42 mm
• Spout Height from Floor: ~832 mm
• Spout Extension: 214 mm from the centerline
• Spout Thickness: 20 mm

Piping:

• Exposed Pipe Diameter: 42 mm
• Pipe-to-Base Distance: 51 mm

Base Plate:

• Base Width/Length: 150 mm x 150 mm
• Base Height: 51 mm
